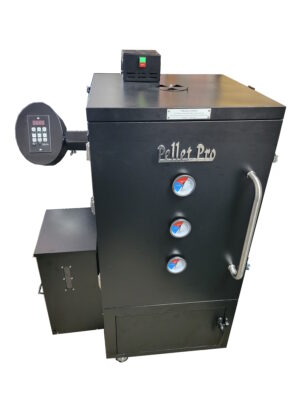

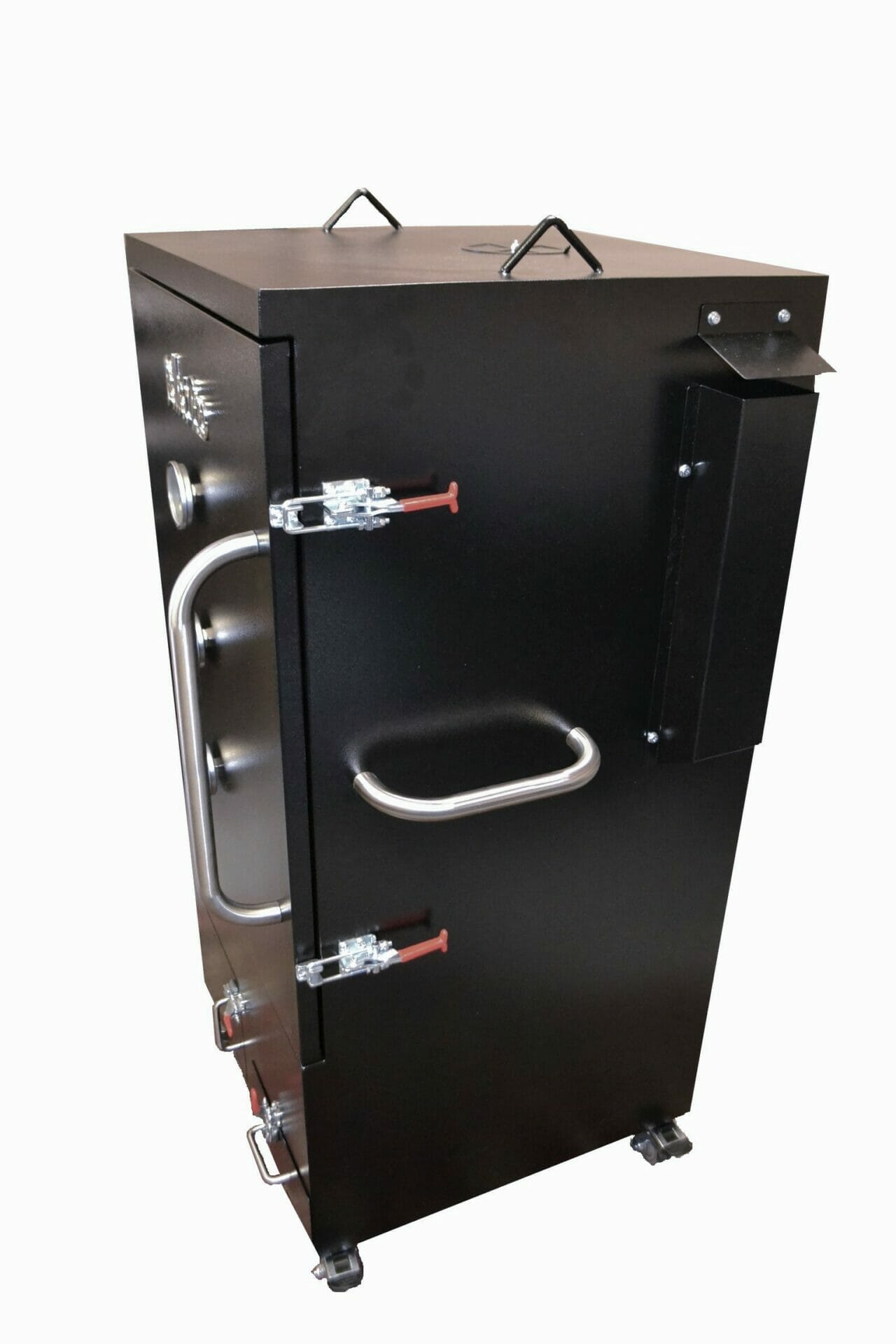

The Pellet Pro® 2300 Vertical Double Wall Cabinet Pellet Smoker with Free Cover and Convection Fan


Introducing the New Pellet Pro® Vertical Cabinet Pellet Smoker

Features (3) Re-Designed 21″ x 20″Stainless Steel Racks and a New 7 Section Rib Rack!

Check out our New Sportsman Program for lower smoking temperatures!

The Convection Fan works perfectly for smoking jerky or maintaining even temperatures throughout the smoker.

240lbs of Pellets for Free with any Pickup Orders!

If ordering pellets, please include a note with the order including your desired flavors.

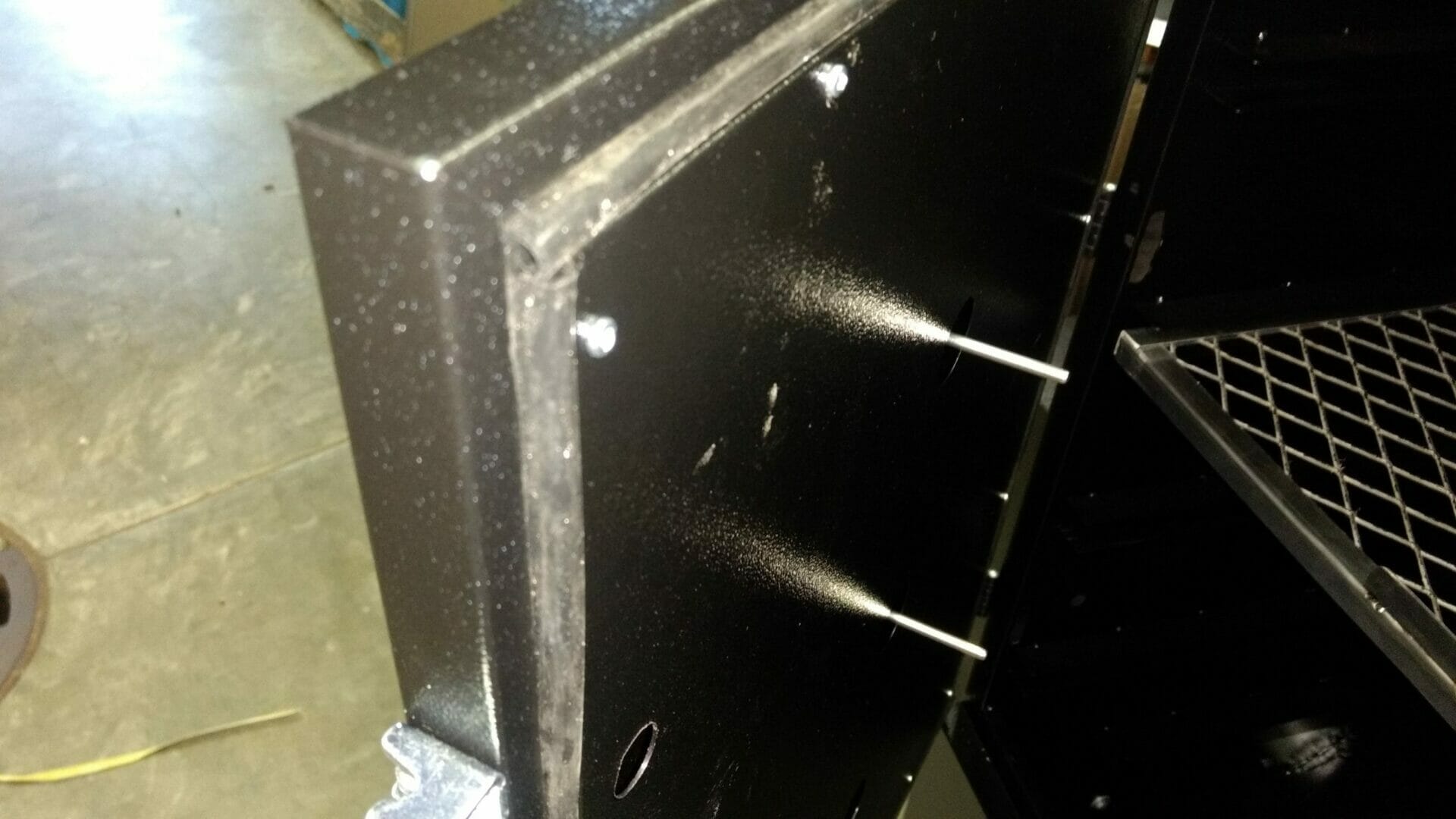

*Double wall construction for maximum heat retention*

240lbs of Pellets for Free with any Pickup Orders!

Never before could you smoke this much food at once with a pellet smoker at this price!

Vertical Smoker Features:

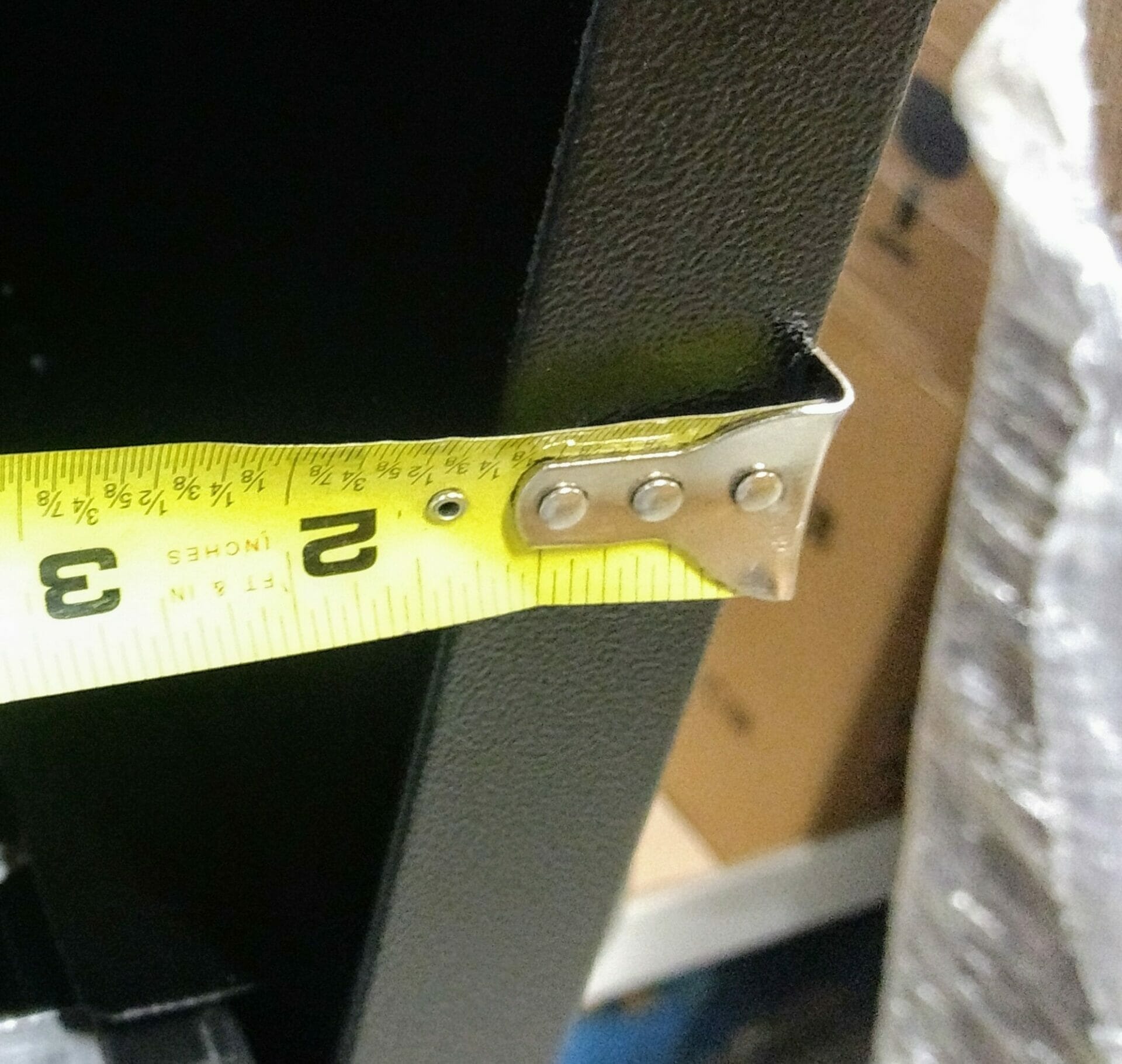

  • Double Wall 18ga Steel
  • Heavy Duty Convection Fan for Maintaining Even Temperatures

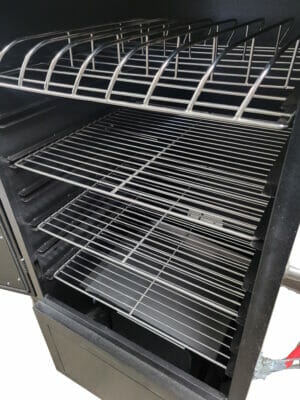

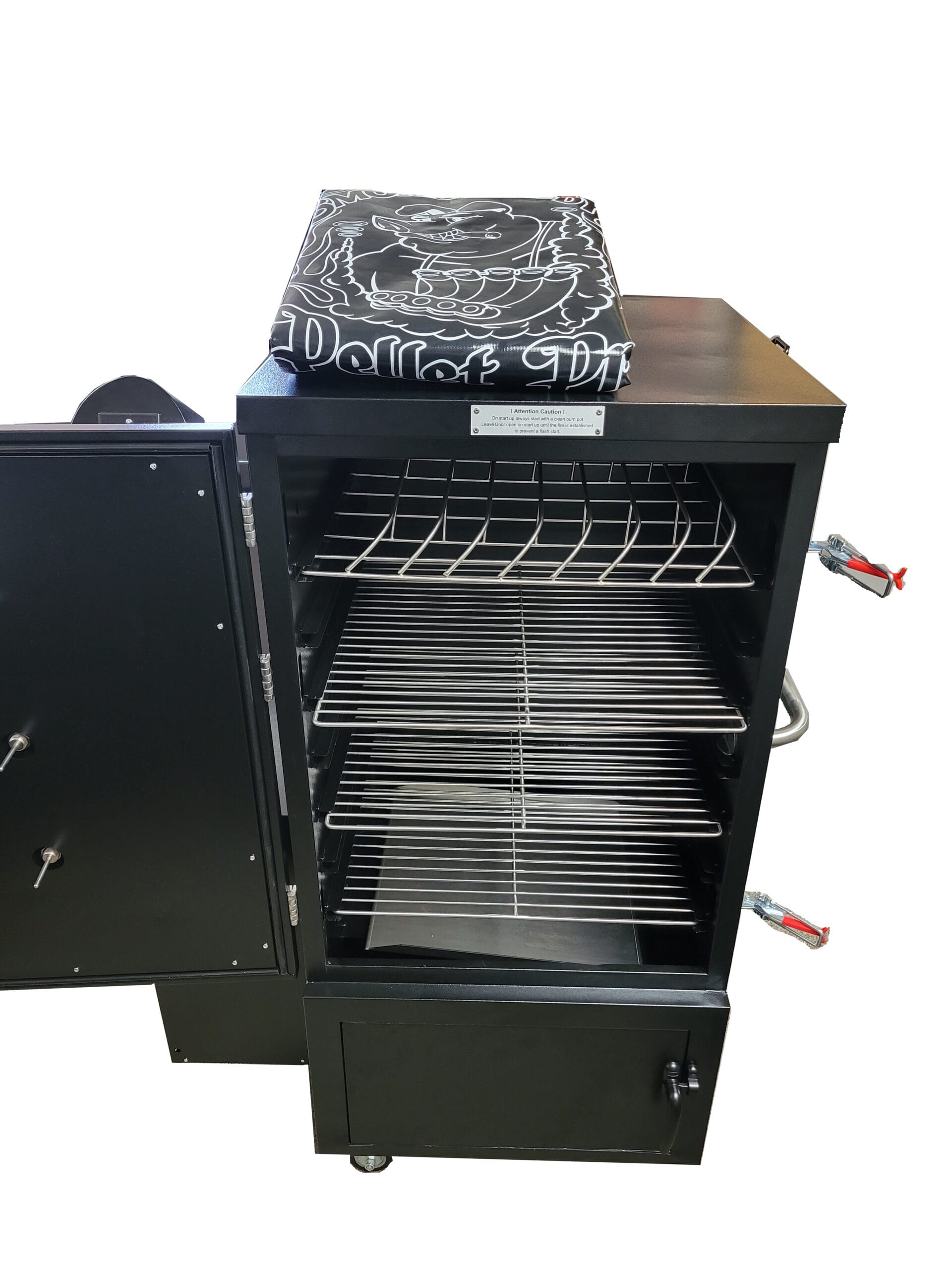

  • (3) Re-Designed 21″ x 20″ Stainless Steel Grates
  • NEW* 7 Section Rib Rack
  • *NEW* Upper level for hanging sausage!  (Stainless Steel V-Channels Sold Separately)

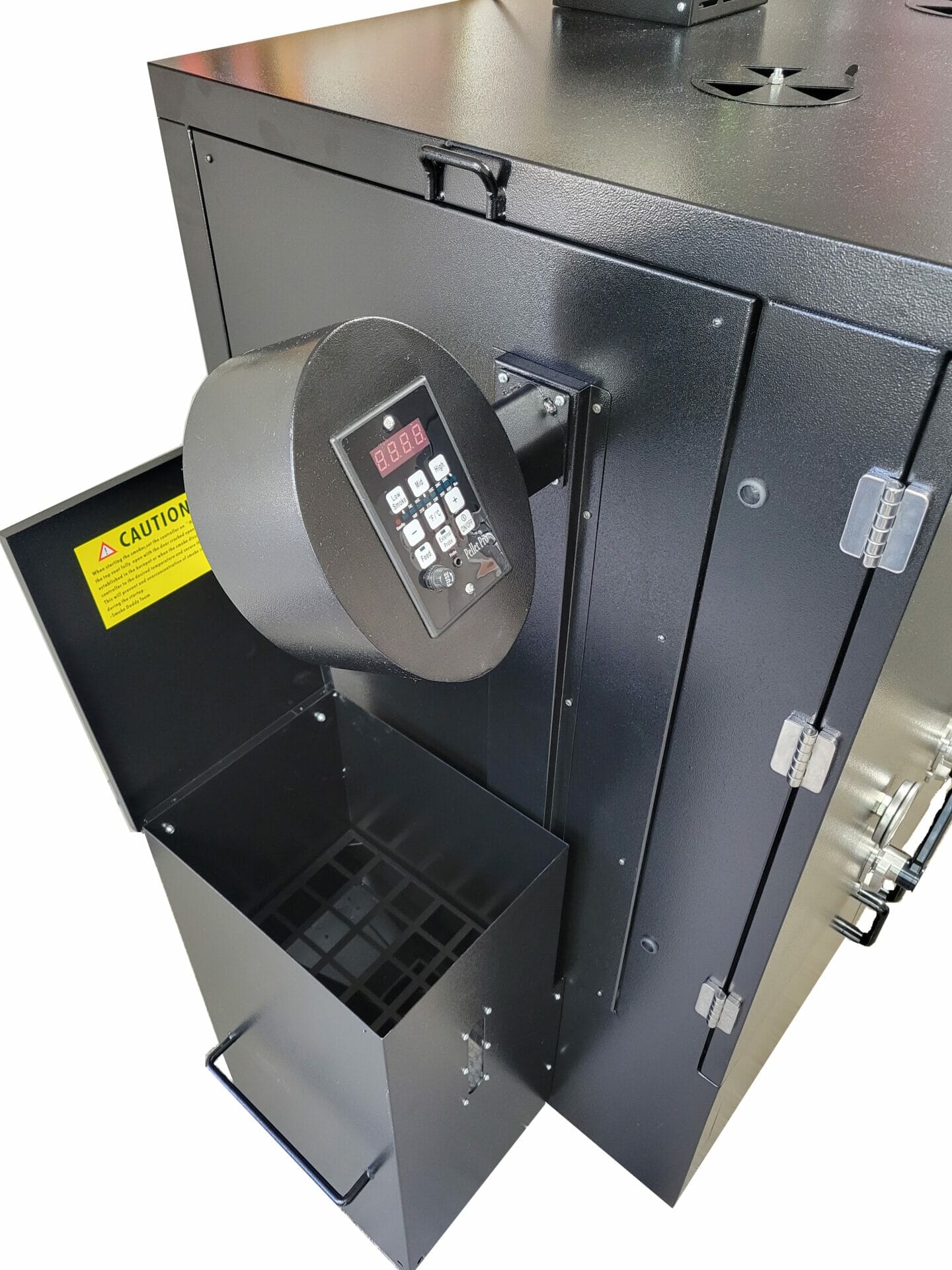

  • NEW Higher Positioned PID Controller for Added Convenience!

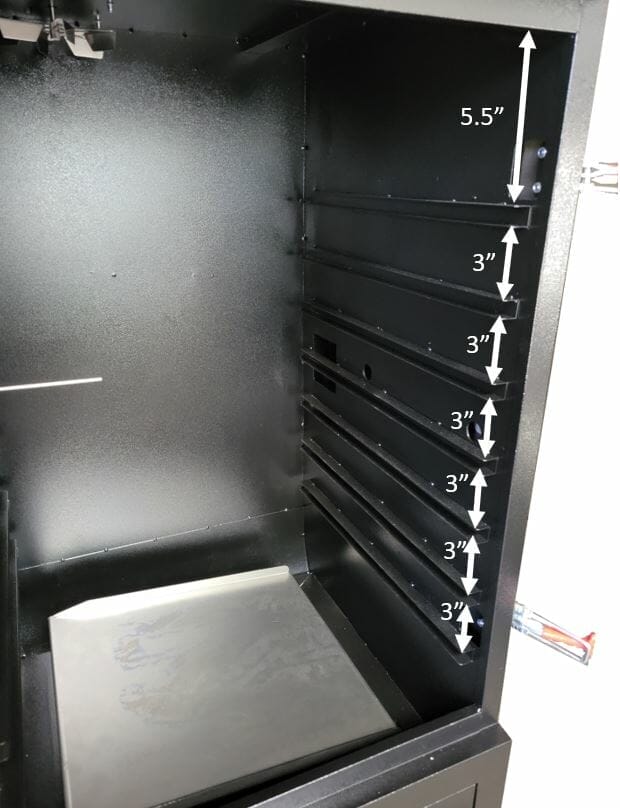

  • Now with 7 Shelf Levels Instead of 4!

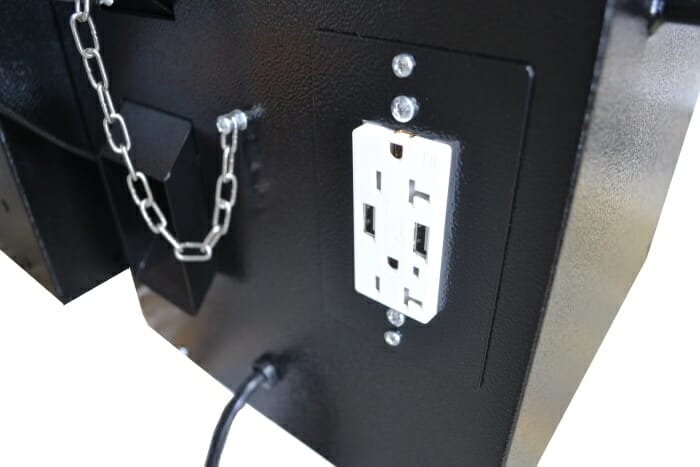

  • 110v Outlets and USB Chargers on the back of the Hopper Assembly!

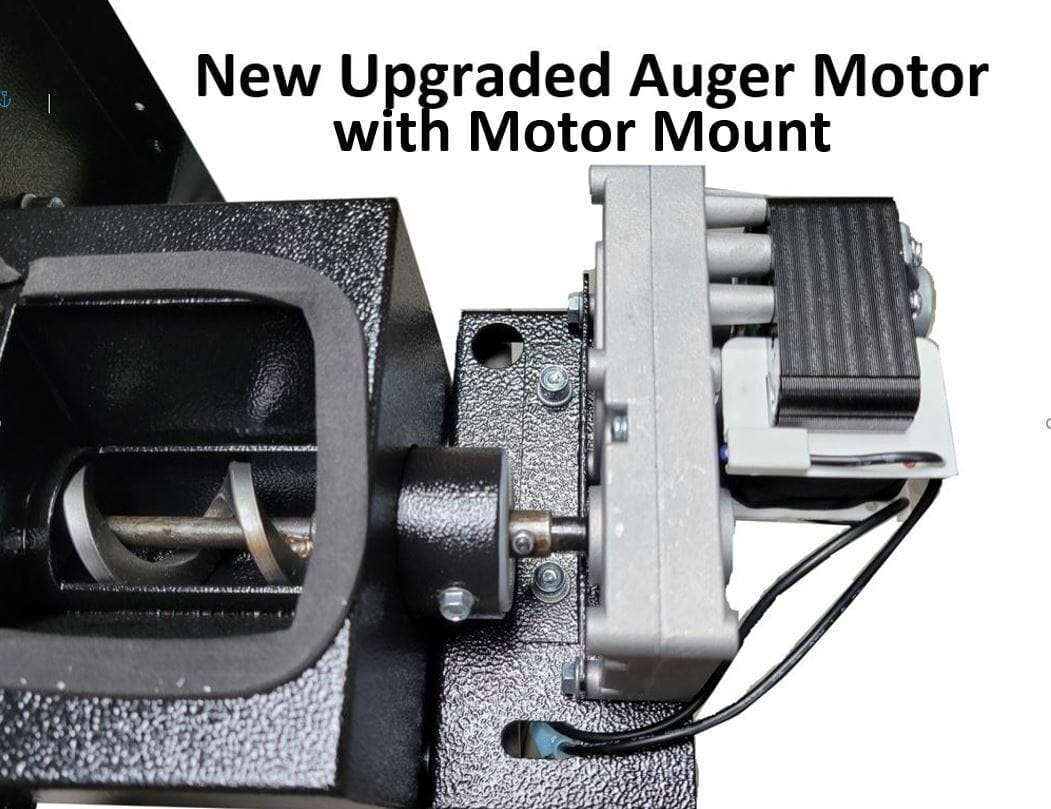

  • NEW Redesigned Auger Motor with Mounting Bracket which extends the life of the auger motor and creates a more efficient feed rate
  • 35lb Capacity Hopper Assembly
  • Includes our Exclusive PID Controller; maintains temperature within 5-10° of the Setpoint
  • Temperature Range from 160°F to 450°F in 5° increments
  • Includes a 5ft Meat Probe with Access Hole
  • Adjustable Top Vent
  • Reverse Flow Style Side Vent
  • Heat Resistant Door Seals with (2) Latches

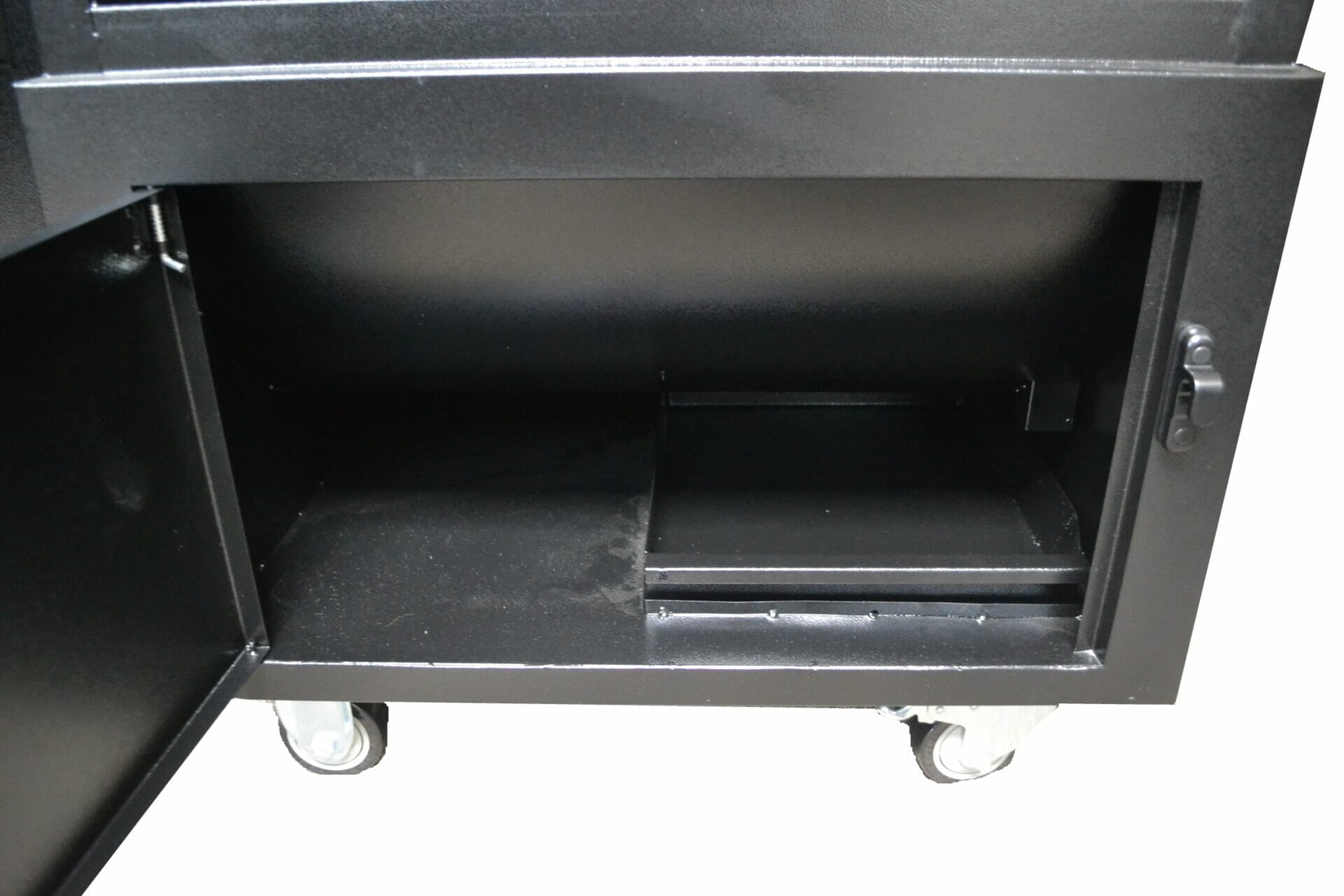

  • Redesigned Grease Tray for Easier Access and Cleaning
  • (4) Heavy Duty Casters
  • Pellet Dump on the Hopper for easy pellet removal
  • 14ga Heat Diffuser and Drip Pan
  • Operating Voltage: AC 110V ±10%, 60Hz
  • Includes a FREE $50 Cover
  • 7-Year Limited Warranty


  • Overall Cabinet Volume: 10cu ft
  • Overall Cooking Volume: 13,860 cu in
  • Cooking Volume: 2,940sq in (using 7 racks)
  • Overall Dimensions:  42″ x 26″ x 54″ (L x W x H)
  • 200lbs without pellets

*Our Recommendation*

We recommend using a disposable aluminum pan on the bottom shelf to catch any grease or drippings. This will prevent an abundance of grease falling onto the drip pan which may result in a grease fire.
Not only will this prevent a grease fire, but it will also increase the humidity which will help keep your meat moist.


For any pickup orders, receive 240lbs of pellets for FREE!  Choose the flavors you’d like!

*Please allow 5-10 business days for delivery*

Weight200 lbs
Dimensions42 × 26 × 54 in


Pellet Pro® PID Technology

The Pellet Pro® uses True PID Technology

PID Description Overview

Proportional-Integral-Derivative (PID) control is the most common control algorithm used in industry and has been universally accepted in industrial control. The popularity of PID controllers can be attributed partly to their robust performance in a wide range of operating conditions and partly to their functional simplicity, which allows engineers to operate them in a simple, straightforward manner.

As the name suggests, PID algorithm consists of three basic coefficients; proportional, integral and derivative which are varied to get optimal response. Closed loop systems, the theory of classical PID and the effects of tuning a closed loop control system are discussed in this paper.

 If you would like to see the full article click here

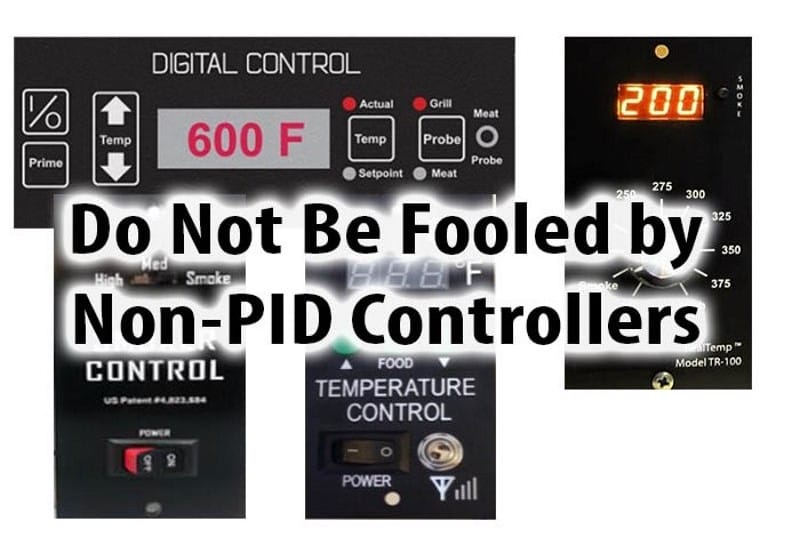

These are NOT PID Controllers:

*New* Upgraded Sportsman Algorithm

  With our newly reengineered PID algorithm named the “Sportsman Program,” you are now able to set the temperature as low as 100 degrees F for smoking at lower temperatures with a pellet smoker.  Perfect for smoking jerky, sausage, fish, or anything else that doesn’t require high temperatures to smoke.

    *PLEASE NOTE*  Since the hopper assembly needs to maintain a fire in the burnpot at all times, you may need to increase the ventilation by cracking open the grill/smoker door.  This will allow the heat to escape properly resulting in lower temperatures.

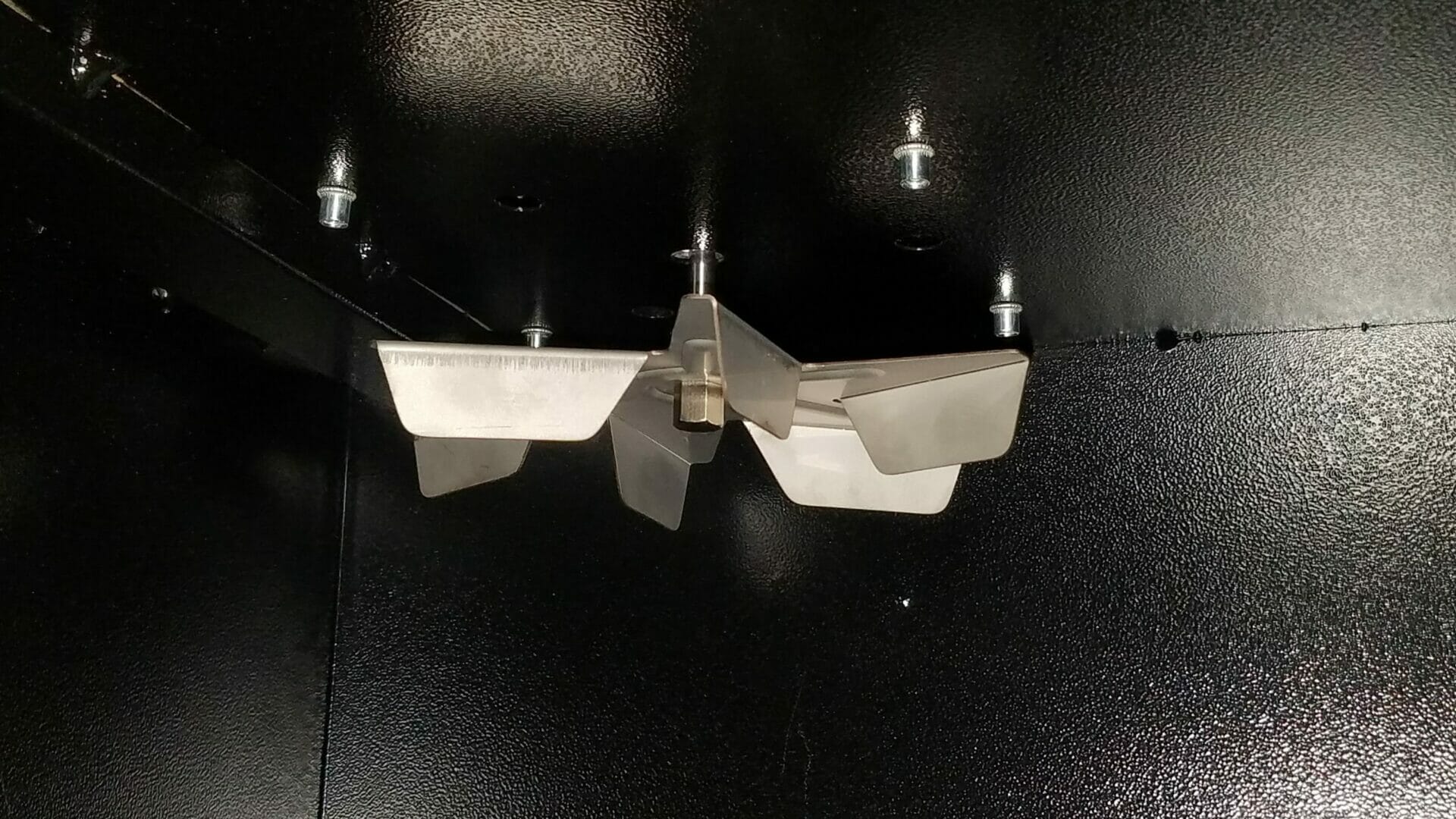

Convection Fan

Our New Convection Fan designed for the Pellet Pro® Vertical Smoker!

The Convection Fan helps eliminate hot and cold spots inside of a smoker and circulates the heat evenly throughout the area.

This can also be used for custom smokers!

This convection fan is very easy to install and operates quietly.


  • Fan Blade Diameter:  6″
  • Shaft Length: 1″
  • Runs off an independent 110v power supply.
  • High Quality Toggle Switch
  • Can be mounted to almost any smoker application

Shipping Policy

When ordering, please provide a phone # so that that freight company can contact you.

Shipping Options:

  • Ship to a Business with a Forklift or Loading Dock (FREE)
  • Ship to the Nearest Terminal for Pickup (FREE)
  • Ship to a Farm Address With a Forklift ($75)
  • Ship to a Residential Address ($150)


Home deliveries from the Freight terminal are the buyers responsibility to arrange. Please allow 5-7 business days for delivery.

International Freight Shipping

A customs broker is needed to process clearance at the border.  Any taxes and duties are the customer’s responsibility.  Please provide contact information for your preferred broker in the order notes.  If you do not have a preferred broker, we can assist you in getting in contact with one.

**PLEASE NOTE**  Due to the pandemic, freight shipments may experience slight delays.

Product Warranty

  • We offer a 30-Day Money Back Guarantee after the received date.   If you are not satisfied with the product within the 30-Day period, we will arrange the product to be shipped to our location in addition to a full refund.  After this 30-Day period, you (the customer) are responsible for return shipping.
  • The customer is responsible for shipping costs to send failed components back to Smoke Daddy Inc.  SDI will be responsible for shipping costs for replacements to the customer.
  • Once the faulty component has been inspected by SDI, SDI will ship out the replacement component within 1-2 business days of receiving.  If the component is not found faulty, then the problem must be determined between SDI and the Customer.

Instructions for Warranty Services:

  1. Call SDI at (847) 336-1329 for returns or issues.
  2. Repackage faulty component safely to prevent any further damage
  3. Include: original customer name, copy of original order, purchase date, order #, and explanation of problem.
  4. Send package to provided shipping address
  5. SDI will provide an email once replacement part has been dispatched

Send Warrantied Items To:

Smoke Daddy Inc.

Warranty Services Dept.

173 Ambrogio Dr STE B

Gurnee, IL 60031

Videos from Dead Broke BBQ Youtube Channel

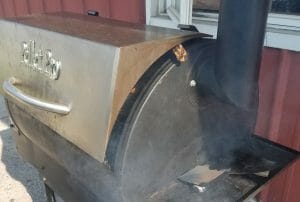

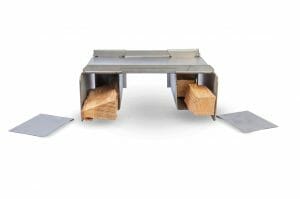

The “Heavy D” Stick Burning Heat Diffuser

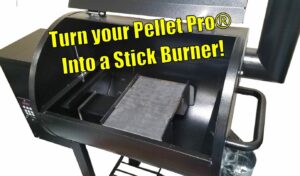

Turn your existing pellet grill into a stick burner to produce that GREAT stick burner smoke!

Fits most Pellet Grills!


  • Diffuser made from heavy 10 gauge steel for even heat distribution and will not warp.
  • Perforated cavities allow the wood to smolder from the burnpot fire and keeps the wood burning.
  • Removable end plate prevent the wood from igniting which would increase the grill temperature.

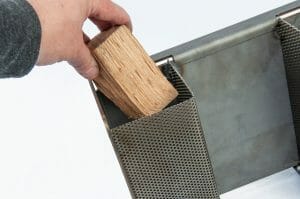

  • Uses either a large wood stick or a few large wood chunks.
  • Lasts for about 2-3 hours.
  • Made in the U.S.A.!!

*Please Note:  Due to the additional heat produced from the wood, you may need to crack the grill lid in order to maintain your desired temperature.  After wood has been burned completely, the lid can then be closed as normal.*

*Patent Pending*
